ScreenPlay JTouch Series 10 - SP6510

Print
Create Link
ScreenPlay JTouch Series 10 - SP6510
ScreenPlay JTouch Series 10 - SP6510

ScreenPlay JTouch 10 Running Android 12 - India & Indonesia

Technology like interactive displays in classroom environments not only makes learning more accessible but also helps dramatically improve student engagement as well. These tools are easy to use, encourage collaboration, and are flexible enough to excel in just about every environment… or at least, they should be.

The important thing to understand is that not all education-oriented interactive displays are created equally. Thankfully, one separates itself from the pack in the best possible way: the recently released ScreenPlay JTouch Series 10, an example of the best that modern IT can be that truly has something to offer both educators and their students alike.

Meet the ScreenPlay JTouch Series 10: A Modern Screen For Modern Needs

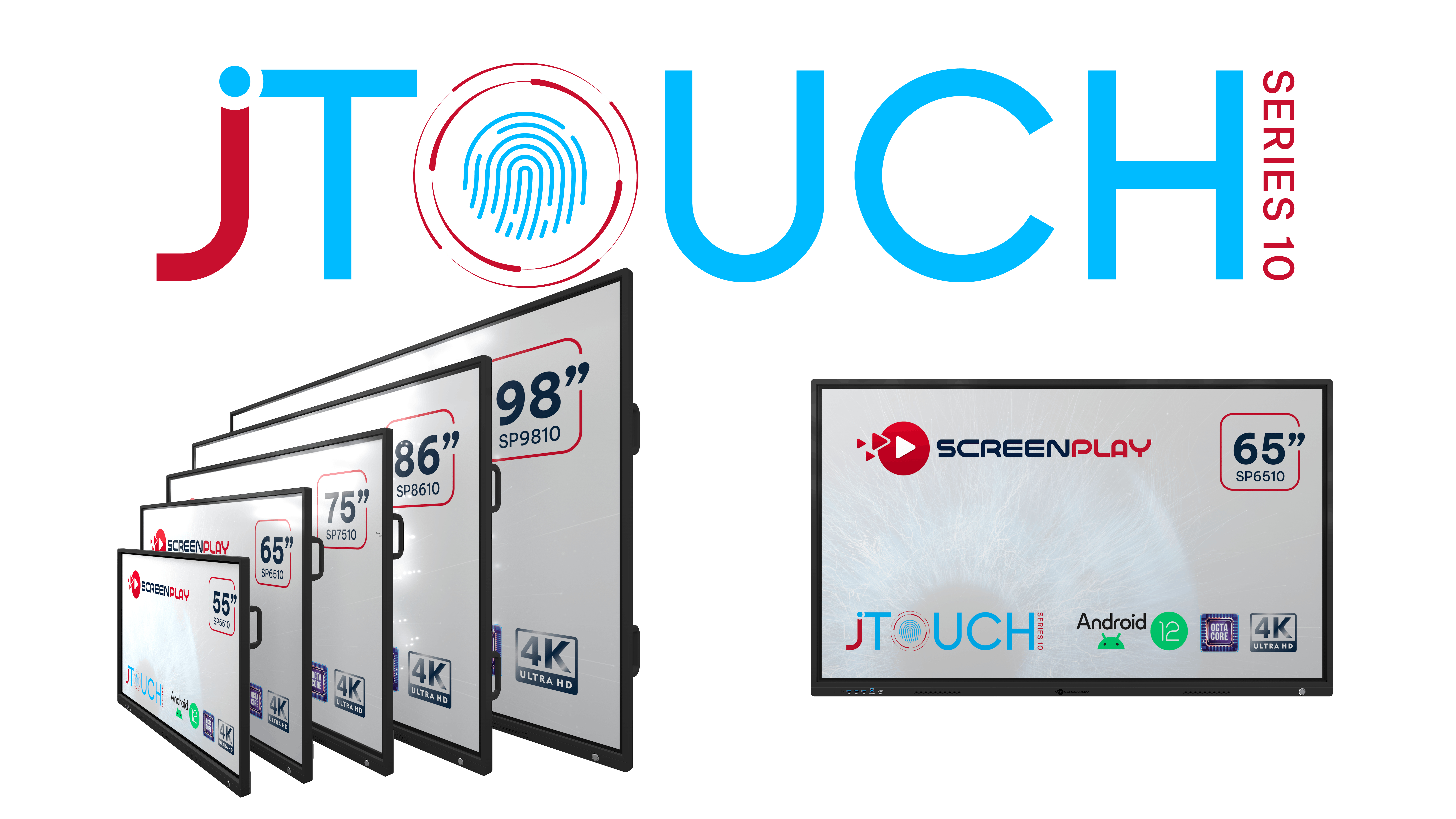

All it takes is a quick look at the technical specifications of the JTouch Series 10 to see just what a flexible product line this truly is. It’s available in not one but two screen sizes currently; 65″ and 75″ with three more coming soon; 55″, 86″ and 98″, presenting an ideal solution for classrooms both large and small:

So whether you’re looking for a solution that is perfect for a small, intimate high school class, a large college lecture hall, or somewhere in the middle, you’ve got it.

The major difference between the models has to do with maximum brightness. While the 55″ through the 75″ can hit an impressive 450 cd/m2, the 86″ and 98″ units go all the way up to 500 cd/m2. This makes those larger units perfect for brighter environments that tend to have a lot of natural lighting.

All screen sizes come complete with a D-LED backlight with native 4K resolution at 3840 by 2160 pixels. They’re in the 16:9 aspect ratio commonly found on most consumer-grade television sets these days. They also sport a static contrast ratio of 1200:1 and a dynamic contrast ratio of 4000:1, allowing them to capably and accurately display everything from videos to slideshows and presentations without an issue.

But perhaps one of the most important features of all ties directly into the ScreenPlay’s durability. When a product is designed to be used in an educational environment, it needs to be able to stand up to just about anything. Not only does it have to be mobile (and thus resistant to dings, falls, and other issues), but you never know what might happen. That’s why the frame material has been constructed from a rugged, high-quality aluminum alloy material – the perfect choice for making sure you get the longest lifespan possible out of the unit.

Connectivity is King

If an interactive display is only as impressive as the content you can play on it, know that the JTouch Series 10 also has this particular element covered. It has an impressive array of inputs.

HDMI inputs allow you to effortlessly connect the ScreenPlay to most modern-day source devices like DVD players, Blu-ray players, and even computers. ARC/CEC functionality streamlines the process, allowing you to use a single remote to control everything (among other benefits). When connected via HDMI, both audio and video are handled over the same cable, so you don’t have to worry about finding multiple plugs or creating a potential tripping hazard.

But in the modern era, most content will be sent to your interactive display via either an internal network or from the Internet. Not only does the ScreenPlay offer the network connectivity you need to meet the demands of today, but it also prepares you for the needs of tomorrow as well with connections like:

  • Built-in Wi-Fi 5G Hotspot (x2)
  • RJ45 – LAN 10/100 Ethernet Connection (x1)
  • RS232 Connection

So it doesn’t matter where your content is coming from or how quickly you need to get it ready for students – you’ll be able to get the results you need without requiring an advanced computer networking degree in order to do it.

Where Innovation Meets Ingenuity

The embedded system itself is also just as impressive as the larger display technology. The CPU, for example, is a highly capable ARM Cortex Octa Core A55 1.4Ghz unit that, when paired with the ARM Mail Quad Core G52 600 MHz GPU, means that there is very little you can throw at the JTouch Series 10 that it won’t be able to play effortlessly.

Note that the base configuration also comes with 4GB DDR4 RAM and 32GB of EMMC ROM, although optional upgrades are available (see more information below).

Optional Upgrades and More

Note that there are also a number of optional upgrades that educators can choose to take advantage of depending on their precise needs. In addition to the ScreenPlay unit itself in any of the aforementioned sizes, you can choose to include a OPS Slot-In PC utilising the connector built in to each display. Three options are available, Intel i5 and i7 processors with Windows 11 Pro operating system, as well as a Google EDLA certified Android 13.8..

Being Google certified means that the display offers seamless integration with the Google ecosystem, including Google Workspace (formerly G Suite for Education) and the entire Microsoft 365 suite. Teachers can easily access their Google accounts, files, and collaborative tools directly from any of the ScreenPlay JTouch 10 Displays when utilising the optional SPOPS3 (Google EDLA Certified Android 13.8 OPS).

The ScreenPlay JTouch Series 10 is now available to order with all the aforementioned features.

Features & Benefits

ANNOTATION OVER ANY SOURCE

Any file you have stored on any off your ScreenPlay JTouch 10 can be annotated over even documents stored on an attached OPS when working in Android on the display. Super functional and handy when reviewing documents as a team or commenting on curriculum content in the classroom.

USB-C A SINGLE CABLE SOLUTION

Easily connect USB-C devices through the 10 series's USB-C port with 15-watt power delivery. USB-C supports video, audio, touch, data, and power output for charging laptop devices quickly over a single cable.

OCTA-CORE PROCESSING

The ScreenPlay JTouch Series 10 CPU is a highly capable ARM Cortex Octa Core A55 1.4Ghz unit that is paired with the ARM Mail Quad Core G52 600 MHz GPU. A powerful combination!

WINDOWS 11 PRO & GOOGLE ANDROID 13.8 EDLA CERTIFIED OPS

Three options are available, Intel i5 and i7 processors with Windows 11 Pro operating system, as well as a Google EDLA certified Android 13.8. Being Google certified means that the display offers seamless integration with the Google ecosystem, including Google Workspace (formerly G Suite for Education) and the entire Microsoft 365 suite. Teachers can easily access their Google accounts, files, and collaborative tools directly from any of the ScreenPlay JTouch 10 Displays when utilising the optional SPOPS3 (Google EDLA Certified Android 13.8 OPS)

MEMORY CAPACITY UPGRADE

4GB DDR4 RAM and 32GB of EMMC ROM as standard on all ScreenPlay JTouch Series 10

LOCAL ASSEMBLY IN INDIA & INDONESIA

The JTouch Seres 10 is exclusively assembled in India and Indonesia to meet the demands of the local education markets.

Display

Product Series
ScreenPlay JTouch Series 12
Screen Size (Diagonal)
65
Backlight
D-LED
Native Resolution
4K 3840 x 2160
Aspect Ratio
16:9
Contrast Ratio
1200:1
Dynamic Contrast Ratio
4000:1
Brightness (Maximum cd/m2)
450
Response Time (ms)
84mm
Display Colours (billion)
1.07
Refrate (Hz)
60
Viewing Angle (H-V°)
178 / 178
Glass Treatment (mohs)
Antiglare, 7
Sensors
-
Audio (w)
2 x 15
Lifetime Maximum (hrs)
50000
Frame Material
Aluminium Alloy
Supported Orientation
Landscape

Connectivity

Inputs
1x Mini D-sub 15-pin (VGA), 1x HDMI™ 2.0, 2x HDMI™ 2.0 ARC/CEC, 1x USB-A 2.0, 3x USB-A 3.0, 2x USB-B, 1x 3.5 mm Stereo Mini Jack, 1x USB Type C,
Outputs
1x 3.5 mm Stereo Mini Jack, 1x SPDIF,
Networking & Control
2x Built-In Wi-Fi (5G) /Hotspot (5G), 1x RJ45 - LAN 10/100, 1x RS232
Expansion
1x Open Pluggable Specification (OPS) Slot, 1x TF Card Slot up to 128GB

Power

Power Supply (V / Hz)
AC 100 - 240, 50/60
Power Consumption Minimum [W]
75
Power Consumption Minimum with OPS [W]
108
Power Supply - Maximum ( W )
350
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5

Touch System

Touch Technology
IR
Touch Points Maximum
32 Android, 50 Windows
Typical Response Time (ms)
<6
Accuracy (mm)
1
Minimum Object Size Single Touch (mm)
>3
Minimum Object Size Multi Touch (mm)
>8
Supported Operating Systems
Windows, Linux, Mac OS, Chrome

Embedded System

Operating System & Version
Android 12
System on Chip (SoC)
V100
Central Processing Unit (CPU)
ARM Cortex™ Octa Core A55 1.4Ghz, A55 x8
Graphics Processing Unit (GPU)
ARM Mail Quad Core G52 600 MHz, G52 x4
Random Access Memory (RAM) GB DDR4
4
Read Only Memory (ROM) GB EMMC
32
Included Applications
Browser, WPS, Calendar, Calculator, Easy Upload, Gallery, Timer, Airgo Cast, VoteKit, Camera, File Manager, Screen Record, Whiteboard, Welcome,
Bluetooth
5.0

Optional Upgrades

SPOPS1
SCREENPLAY, OPS SLOT-IN PC, D001, INTEL I5-11400, 16GB/512GB SSD, SPOPS1
SPOPS2
SCREENPLAY, OPS SLOT-IN PC, INTEL® CORE™ i7-11700, 16GB 512GB SSD, SPOPS2
SPOPS3
SCREENPLAY, OPS SLOT-IN PC, EDLA 8GB, 128GB, SPOPS3

General

Product Dimensions (L x W x H) (mm / in)
1485 x 88 x 901 / 58.5 x 3.46 x 35.4
Product Weight (kg / lb)
37 / 81
Shipping Dimensions (L x W x H) (mm / in)
1600 x 180 x 990 / 63.0 x 7.1 x 39.0
Shipping Weight (kg / lb)
48 / 106
Mounting VESA MIS-F
400 x 500
Operating Temperature (°C / F)
0 ~ 40 / 32 ~ 104
Operating Humidity [%]
10 ~ 90
Operating Altitude (m / ft)
<5000 / >16404
Storage Temperature (°C / F)
-20 ~ 40 / -4 ~104
Storage Humidity [%]
10 ~ 90
Security
PIN, Kensington Lock
Safety and Regulatory
BIS, TKDN
Environmental
BIS, TKDN
In the Box
Interactive Display, Simplified Users Guide, VGA Cable, Regional Power Cord, Remote Control (no Battery), USB Cable, Wall Mount
