Professional Series IN1156
WXGA - 3000 ☀ - 16:10 Aspect Ratio
The IN1156 ultra-portable projector is built to perform, with HDMI input, high brightness, ultra-long-lasting images, and unbeatable quality and color. Featuring a compact, light-weight design, the IN1156 is perfect for business travelers, or anyone who needs to take their presentation on the road.
Projection Technology
Texas Instrument DLP® Quantum LED
Panel Size
0.45” S310
Native Resolution
WXGA
Pixels
1280 x 800
Aspect Ratio
16:10
Contrast Ratio
1000000:1
Brightness (Lumens)
3000
Light Source
LED
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 - 102
Vertical Sync. Range (Hz)
24 - 120
Uniformity (%)
JBMA 85% / ANSI 70%
Optical
Lens
-
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
103
Focal Length (mm)
-
F-Stop
1.7
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Auto & manual
Vertical Keystone Correction
± 40
Horizontal Keystone Correction
-
Projection Factor
1.2:1
Projection Distance (Meters/Feet)
0.8 ~ 8.2 / 2.7 ~ 26.11
Optical Zoom
-
Digital Zoom Demagnification / Magnification
-
Focus Adjustment
Manual

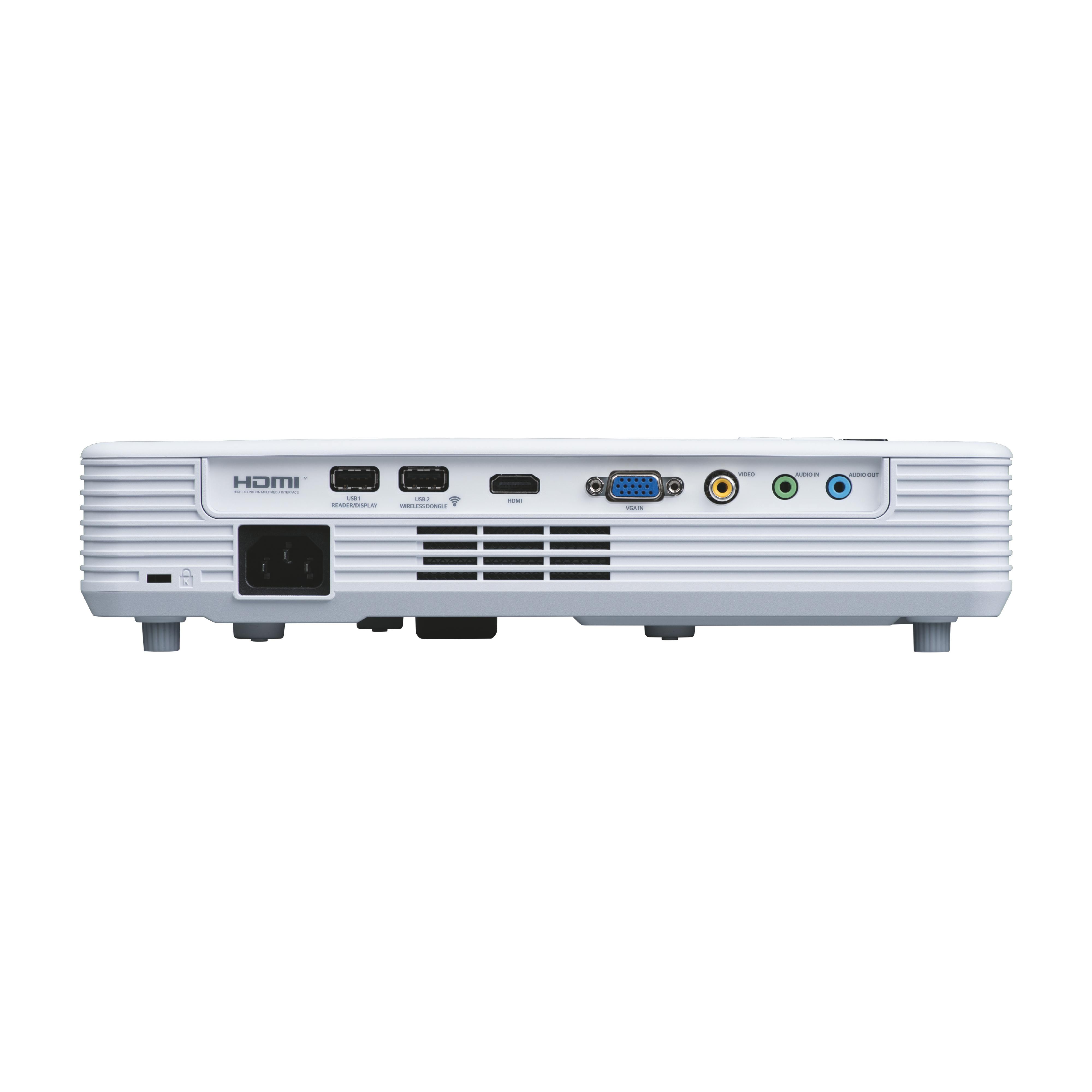

Connectivity
Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
✅
S-Video
-
HDMI™ 1.4
✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
-
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
RS232
-
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
✅
Micro USB for Service
-
Document Reader
✅
Video Player
✅
Photo Viewer
✅
Music Player
✅
12v Screen Trigger
-
Power
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
215
Power Consumption Min. (W)
-
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
General
Dimensions (W x H x D) (mm / in)
55.9 x 297.2 x 199.9 / 2.2 x 11.7 x 7.9
Product Weight (Kilograms/Pounds)
2 / 4.4
Fan Noise (dB)
30
Audio (W)
3
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
-
Security
Kensington Security Slot™
In the Box
Power cord, Remote (no batteries), HDMI Cable, Documentation, Quick Start Guide, Carrying case, User Manual (CD), Lens cap
Safety and Regulatory
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
Environmental
WEEE, RoHS
