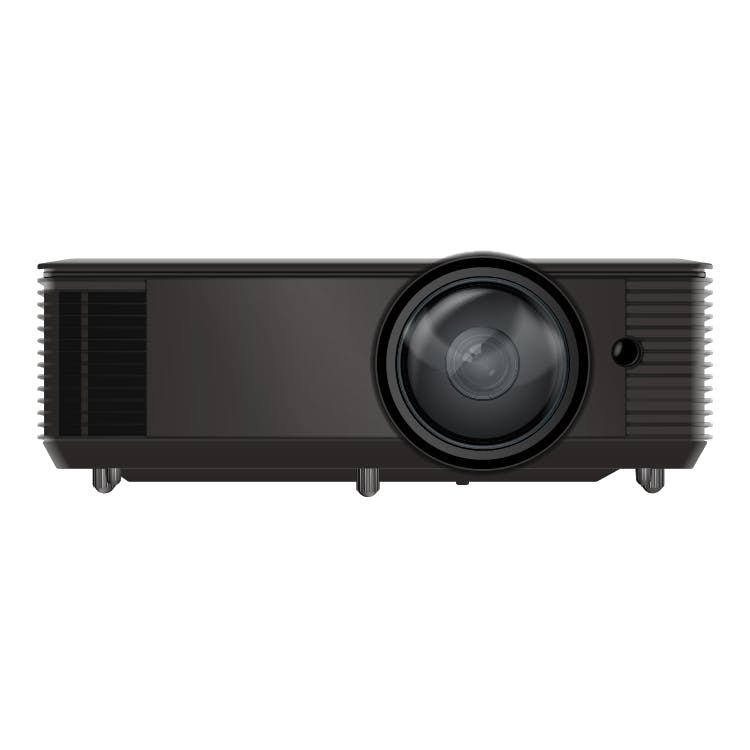

Short Throw Series IN114BBST
Short Throw Series IN114BBST

XGA - 3500 ☀ - 4:3 Aspect Ratio

The IN114BBST short-throw projector does more with ultra-long lamp life, high brightness, and amazing connectivity. Beam more perfect images and engage your audience with 2 HDMI inputs, VGA, video, and audio capability. Plus, the compact design and lightweight makes it as easy to move around as it is to install.


Projection Technology
Texas Instruments DLP®
Panel Size
0.55" DMD
Native Resolution
XGA
Pixels
1024 x 768
Aspect Ratio
4:3
Contrast Ratio
30000:1
Brightness (Lumens)
3500
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
31.469 ~ 97.551
Vertical Sync. Range (Hz)
56 ~ 85
Uniformity (%)
80

Optical

Lens
1.1x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
115
Focal Length (mm)
7.15
F-Stop
2.7
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual
Vertical Keystone Correction
± 20
Horizontal Keystone Correction
-
Projection Factor
0.621:1
Projection Distance (Meters/Feet)
0.4 ~ 3.76 / 1.3 ~ 12.3
Optical Zoom
1:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual

Connectivity

Inputs
Mini D-sub 15-pin (VGA)
Composite Video
-
S-Video
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
3.5 mm Stereo Mini Jack
Powered USB-A for Wireless Dongle
3D Sync
-
Other
RS232
RJ45 HDBaseT
-
All Major 3D Formats
USB-B 2.0 for Service
-
USB-A for Service
Micro USB for Service
-
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-

Power

Power Supply
100-240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5

General

Dimensions (W x H x D) (mm / in)
236 x 313 x 107 / 9 x 12 x 4
Product Weight (Kilograms/Pounds)
2.6 / 5.7
Fan Noise (dB)
30
Audio (W)
10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
In the Box
Power cord, VGA cable, Safety instructions, User documentation, Remote control without batteries
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
