Professional Series IN1188HD
1080p - 3000 ☀ - 16:9 Aspect Ratio
The IN1188HD ultra-portable projector is built to perform, with HDMI input, high brightness, ultra-long-lasting images, and unbeatable quality and color. Featuring a compact, lightweight design.
Projection Technology
Texas Instrument DLP® LED
Panel Size
0.45” S310
Native Resolution
1080p Full HD
Pixels
1920 x 1080
Aspect Ratio
16:9
Contrast Ratio
1000000:1
Brightness (Lumens)
3000
Light Source
LED
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
4096 x 2160
Horizontal Sync. Range (KHz)
15 ~ 135
Vertical Sync. Range (Hz)
24 ~ 120
Uniformity (%)
JBMA 85% / ANSI 70%
Optical
Lens
-
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
103
Focal Length (mm)
-
F-Stop
1.7
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Auto & manual
Vertical Keystone Correction
± 40°
Horizontal Keystone Correction
-
Projection Factor
1.2:1
Projection Distance (Meters/Feet)
0.8 ~ 8.2 / 2.7 ~ 26.11
Optical Zoom
-
Digital Zoom Demagnification / Magnification
-
Focus Adjustment
Manual

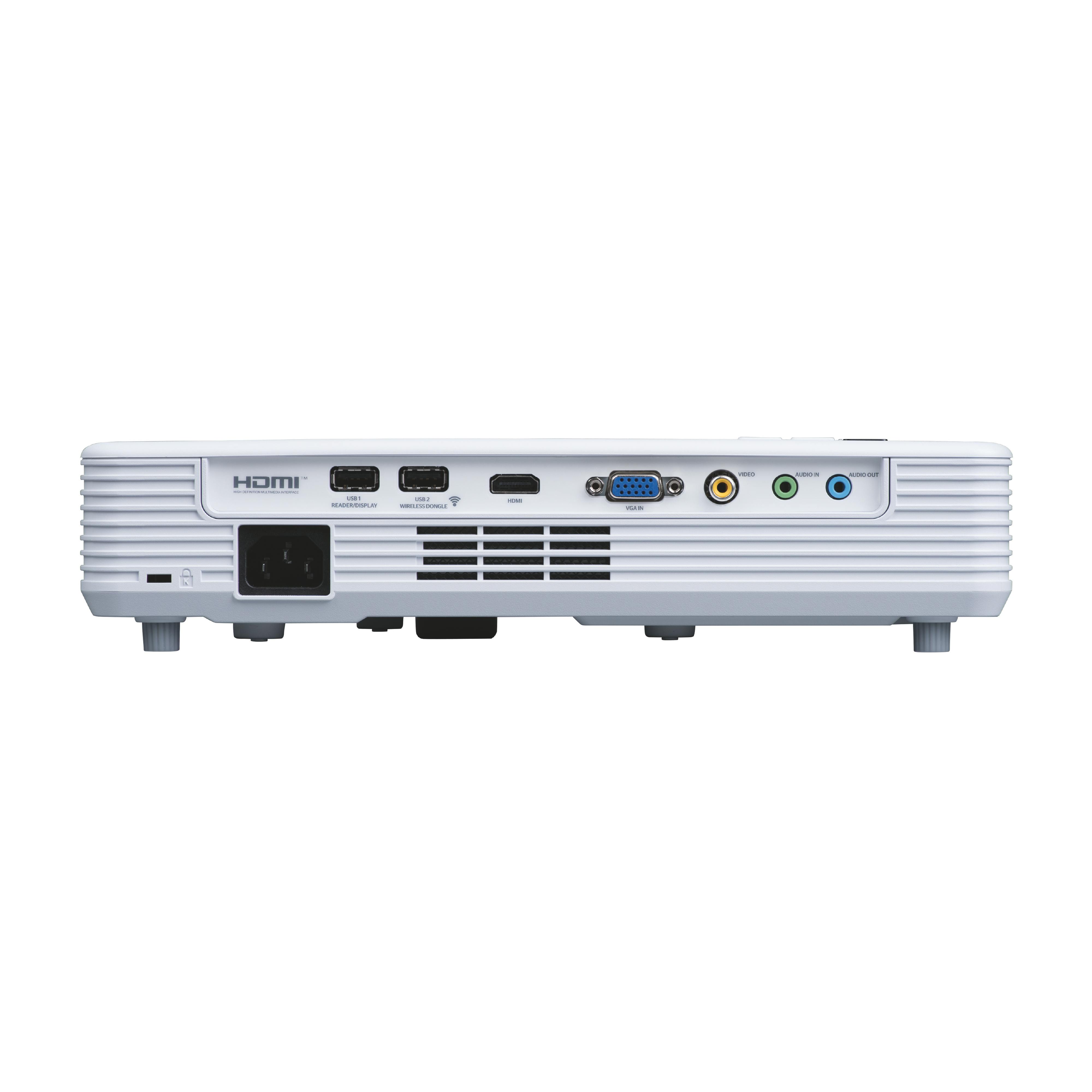

Connectivity
Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
✅
S-Video
-
HDMI™ 1.4
✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
-
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
RS232
-
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
✅
Micro USB for Service
-
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-
Power
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
215
Power Consumption Min. (W)
-
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
General
Dimensions (W x H x D) (mm / in)
55.9 x 297.2 x 199.9 / 2.2 x 11.7 x 7.9
Product Weight (Kilograms/Pounds)
2 / 4.4
Fan Noise (dB)
30
Audio (W)
3
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
-
Security
Kensington Security Slot™
In the Box
Power cord, Remote (no batteries), HDMI Cable, Documentation, Quick Start Guide, Carrying case, User Manual (CD), Lens cap
Safety and Regulatory
cTUVus/CB report/FCC/CE EMC/ UV(Bauart)/CCC/PSB/ NOM/CU EAC/RCM/ EN62471-5/CECP/KC/KCC/BSMI/Energy Mexico
Environmental
-
