Genesis Series IN114BB
XGA - 3800 ☀ - 4:3 Aspect Ratio
The IN114BB projector does more with ultra-long lamp life, high brightness, and amazing connectivity. Beam more perfect images and engage your audience with 2 HDMI inputs, VGA, video, and audio capability. Plus, the compact design and lightweight makes it as easy to move around as it is to install.
Projection Technology
Texas Instruments DLP®
Panel Size
0.55" DMD
Native Resolution
XGA
Pixels
1024 x 768
Aspect Ratio
4:3
Contrast Ratio
30000:1
Brightness (Lumens)
3800
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
31.469 ~ 97.551
Vertical Sync. Range (Hz)
56 ~ 85
Uniformity (%)
80
Optical
Lens
1.1x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
115
Focal Length (mm)
21.85 ~ 24.01
F-Stop
2.41
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual
Vertical Keystone Correction
±40
Horizontal Keystone Correction
-
Projection Factor
1.94:1 ~ 2.16:1
Projection Distance (Meters/Feet)
1.2 ~ 11.9 / 3.11 ~ 39
Optical Zoom
1.1:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual

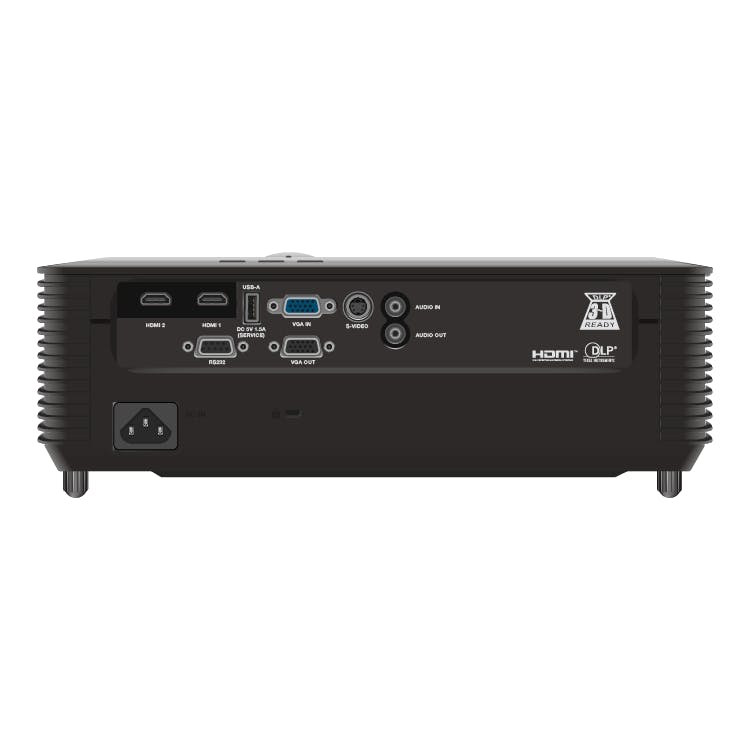

Connectivity
Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
-
S-Video
✅
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
✅
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
RS232
✅
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
✅
Micro USB for Service
-
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-
Power
Power Supply
100-240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5W
General
Dimensions (W x H x D) (mm / in)
236 x 313 x 107 / 9 x 12 x 4
Product Weight (Kilograms/Pounds)
2.6 / 5.7
Fan Noise (dB)
30
Audio (W)
10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 1000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
In the Box
VGA Cable, Power Cord, Remote Control (No Batteries)
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
