Genesis Series IN112BB

Print
Create Link
Genesis Series IN112BB
Genesis Series IN112BB
Genesis Series IN112BB
Genesis Series IN112BB
Genesis Series IN112BB
Genesis Series IN112BB
Genesis Series IN112BB
Genesis Series IN112BB

SVGA - 3800 ☀ - 4:3 Aspect Ratio

The IN112BB projector does more with ultra-long lamp life, high brightness, and amazing connectivity. Beam more perfect images and engage your audience with 2x HDMI inputs, VGA, video, and 10-watt audio capability. Plus, the compact design and lightweight makes it as easy to move around as it is to install.

Features

Industry-leading 15000 hours lamp lifespan

Our lamps are designed to last longer, ensuring extended durability and long-term performance. This exceptional longevity reduces the need for replacements, offering unparalleled reliability and cost savings over time.

Vivid Images On Any Surface with 3500 lumens

Transform any room into a dynamic presentation space or vibrant cinema even in ambient environment. With 4000 lumens, image colours and details are crisp and clear. Presentations look more professional, and even simple video clips become more engaging.

Eco-Friendly with Minimal Maintenance

With minimal maintenance and no filter to replace, this means less waste and reduced environmental impact contributing to sustainability and supports a greener future while providing reliable and consistent performance.


Projection Technology
Texas Instruments DLP®
Panel Size
0.55" DMD
Native Resolution
SVGA
Pixels
800 x 600
Aspect Ratio
4:3
Contrast Ratio
30000:1
Brightness (Lumens)
3800
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
31.469 ~ 97.551
Vertical Sync. Range (Hz)
56 ~ 85
Uniformity (%)
80

Optical

Lens
1.1x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
115
Focal Length (mm)
21.85 ~ 24.01
F-Stop
2.41
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual
Vertical Keystone Correction
± 40°
Horizontal Keystone Correction
-
Projection Factor
1.94:1 ~ 2.16:1
Projection Distance (Meters/Feet)
1.2 ~ 12.0 / 3.11 ~ 39.3
Optical Zoom
1.1x
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual

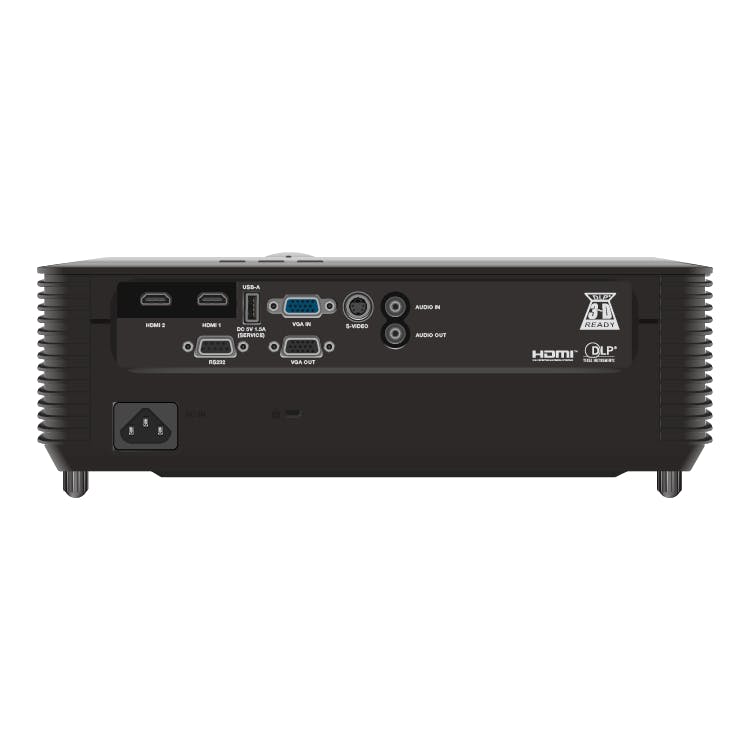

Connectivity

Inputs
Mini D-sub 15-pin (VGA)
Composite Video
-
S-Video
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
3.5 mm Stereo Mini Jack
Powered USB-A for Wireless Dongle
3D Sync
-
Other
RS232
RJ45 HDBaseT
-
All Major 3D Formats
USB-B 2.0 for Service
-
USB-A for Service
Micro USB for Service
-
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-

Power

Power Supply
100-240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5

General

Dimensions (W x H x D) (mm / in)
236 x 313 x 107 / 9 x 12 x 4
Product Weight (Kilograms/Pounds)
2.6 / 5.7
Fan Noise (dB)
30
Audio (W)
10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 1000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
In the Box
VGA Cable, Power Cord, Remote Control (No Batteries)
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
